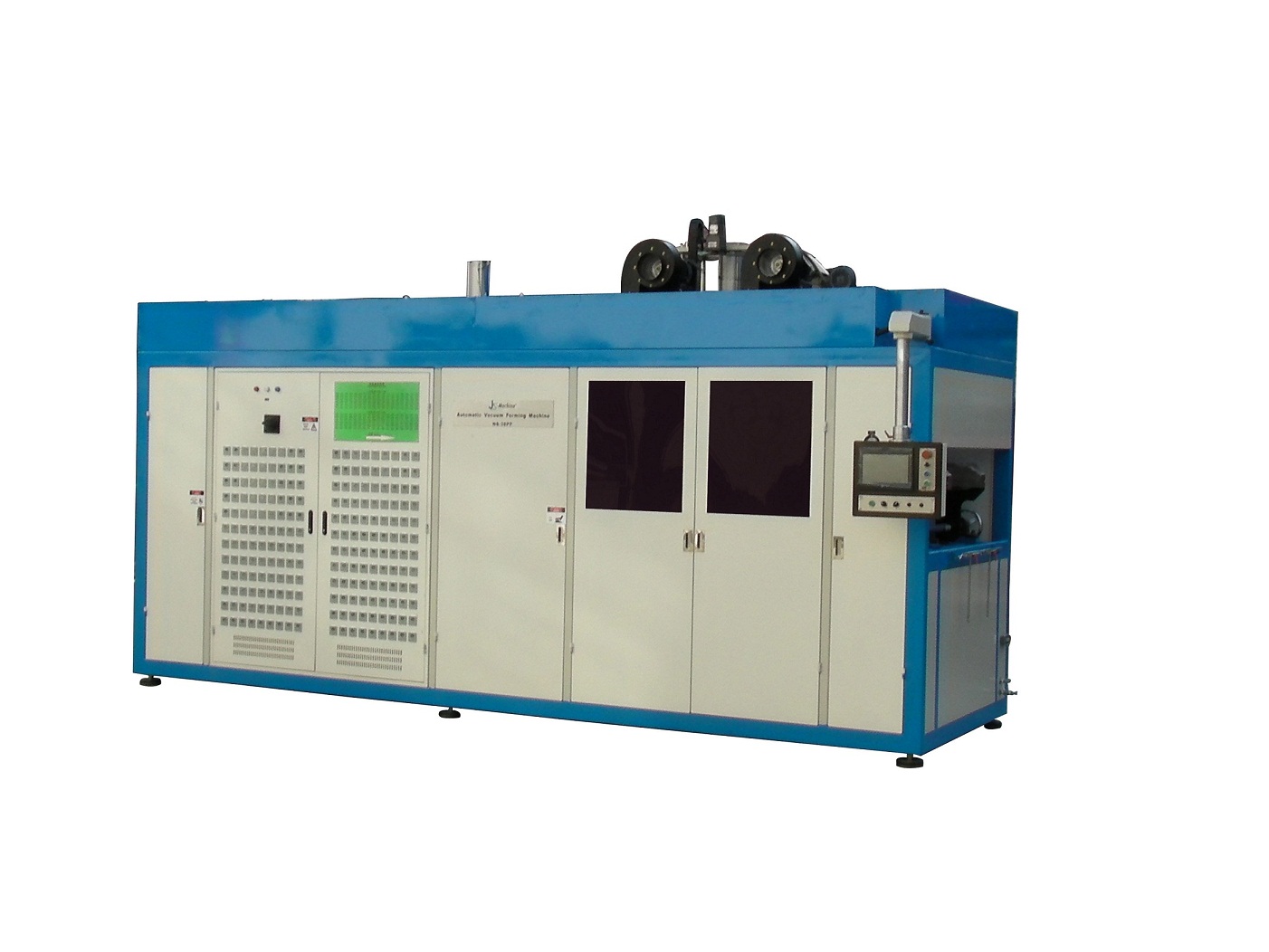

| Automatic Vacuum Forming Machine |
NS-28, NS-38,NS-38L |
NS series for vacuum forming of blister
products.Applications:PVC,PP,PE,OPP,PLA,PS,ABS,etc
It can .produce different shapes and sizes of blister.Such as
stationery,electrical appliances,lights,disposable food
containers,cup,cap,bowl,moon cake boxes,tray,etc.
|
|
|
|
|
The Control System: PLC programmable controller & touch screen panel for fully automatic production which include material feeding>>heating>>vacuum forming>>sheet slitting. |
|
 |
|
The Control Section: The main parts are imported from the major supplier,they are Schneider,SMC,Festo,Airtac,Bosh Rexroth,Panasonic, Sanyo Denki,etc. |
|
|
|
Interface: 10.4'' or above colour touch screen panel for easy and direct opeation that can provide actual production data and history records for management reference. |
|
|
|
Heating System: The ceramic infrared heating elements are controlled by SSR individual with 99 digital switches to ensure the temperature of sheet is precisely and stablely managed. |
|
|
|
Feeding transmission parts: Special design aluminium alloy chain track provides low friction coefficient in between track and chain .The chian feed index is controlled by inverted motor or ac servo motor as well ,for accuracy index and synchronous signal for program interface. The accuracy transport will reduce waste of scrap after production. |
|
|
|
Mechanical parts: special aluminum alloy track, no deformation, the cooling effect of outstanding friction coefficient is small, no vibration |
|
|
|
Control mode: Manual and automatic. |
|
|
|
Additional features: Twice upper mould;Twice vaccum;Vacuum delay;Muto-vibration;Stroke of upper & lower table can be fine adjustable;Speed of material transport is controlled by digital setting and the maximum speed 1500mm/sec.
|
|
|
|
|
|
|
|
|
|
|
